Product Highlights

    Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees

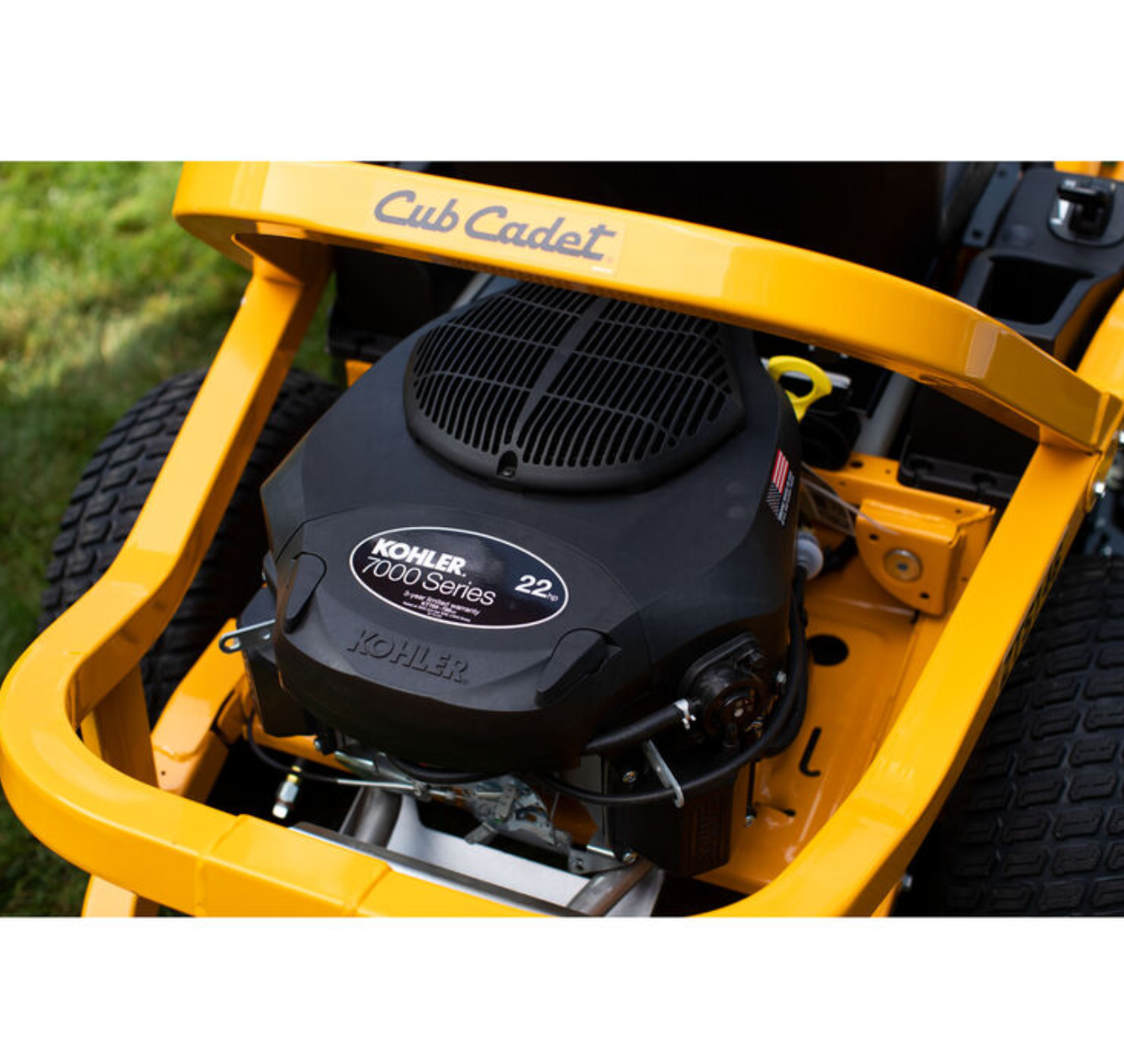

    A 22 HP/725cc Kohler 7000 series V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation

    Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish

    46-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness.

Product Specifications

Engine

    Engine Brand: Kohler®

    Engine Model: 7000 Series

    Engine Model Number: KT725

    Engine Displacement: 725cc

    Engine Output: 22HP

    Starter Type: Electric

    Fuel Tank Capacity: 3.5 gal. US (13.25 L)

    Cylinders: Twin

    Engine Start: Ignition Key

    Engine Oil Capacity: 2.0 qt. US (1.89 L)

    Lubrication: Fully pressurized

    Charging System: 12 amp regulated

    Fuel Gauge: No

    Governor: Mechanical

    Choke: Choke-a-matic

    Air Filter: Dual element

    Oil Filter: Yes

    Fuel Delivery: Carburetor

Battery

    Battery: 210 CCA

    Battery Type: AGM (Absorbent Glass Mat)

    Battery Voltage: 12V

Drive System

    Transmission: Hydro-Gear EZT 2200

    Forward Speed: 7 MPH / 11.3 km/h

    Reverse Speed: 3.5 MPH / 5.6 km/h

    Drive System: Hydrostatic

Cutting Deck

    Deck Cutting Width: 46 in

    Deck Wash: No

    Deck Material: 11-gauge steel

    Deck Engagement (PTO): Electric

    Deck Construction: Fabricated

    Blade(s): 2

    Deck Lift: Foot pedal with Dial Adjust

    Cutting Height Range: 1'' - 4.5''

    Anti-Scalping: 2 gauge wheels

    Deck Positions: 15

Warranty

    Warranty: 3-year unlimited hours

    Frame Warranty: Lifetime Limited

    Deck Shell Warranty: Lifetime Limited

    Commercial Warranty: No

Chassis

    Frame: 2'' x 2'' tubular steel

    Turning Radius: 0°

    ROPS: No

    Rear Tow Hitch: Yes

    Corrosion Protection: Yes

Controls

    Cruise Control: No

    Brakes: Disc

    Steering Control: Steering Wheel

Comfort

    Seat Type: 20" high back

    Armrests: No

    Seat Adjustment: Lever

Wheels

    Rear Tires: 20”x 8”-8"

    Front Tires: 13"x 6.5"-6"

    Tire Tread: Turf Master / Multi Trac

Additional Specifications

    Hour Meter: No

    Mulch Kit: Available separately

    Headlight(s): Dual-LED

    Cup Holder: Yes

    Operator Presence System: Yes

    Parking Brake: Hand Lever

    Model Number: 17ARGBYNA10

Specifications

    Series: Ultima Series™ ZTS
